雙面型塑膠棧板-四叉口

瀏覽:    發佈時間:2019-10-06 10:00:25

四叉口


型號Model No

尺寸(xx)mm

Size(L x W x H )mm

靜荷重(噸)

Static

Loading(Ton)

動荷重(噸)

Dynamic

Loading(Ton)

架荷重(噸)

Racking

Loading(Ton)

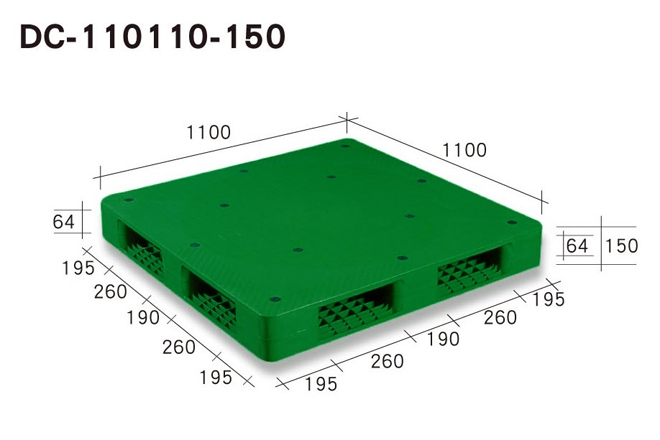

DC-110110-150

1100X1100X150

6.0

2.5

1.1

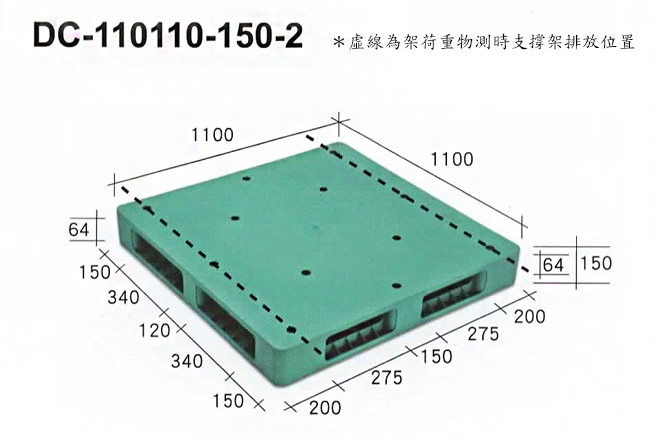

DC-110110-150-2

1100X1100X150

4.5

1.5

0.75

DC-110110-150-3

1090X1090X150

3.5

2.0

1.0

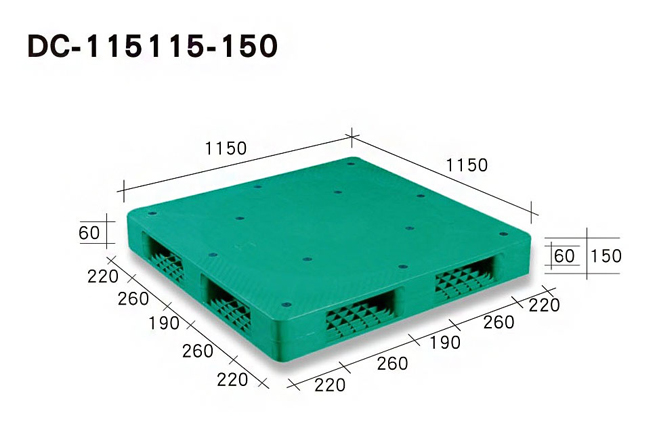

DC-115115-150

1150X1150X150

6.0

2.2

1.1

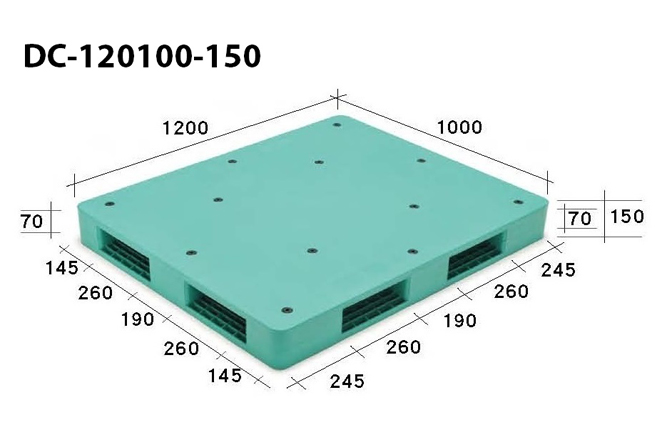

DC-120100-150

1200X1000X150

3.6

1.5

0.7

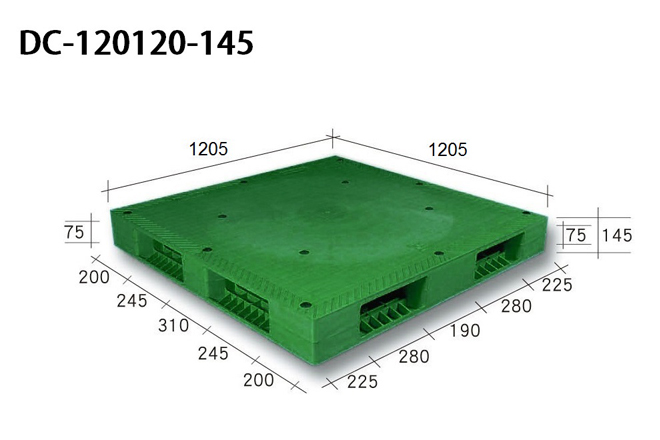

DC-120120-145

1205X1205X145

4.5

1.6

0.75

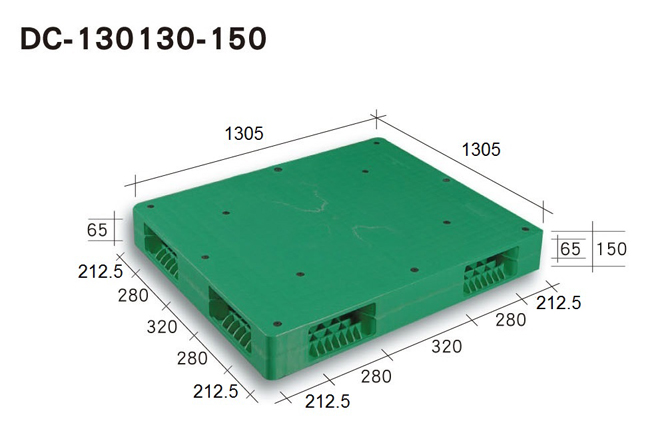

DC-130130-150

1300X1300X150

6.0

2.5

1.1

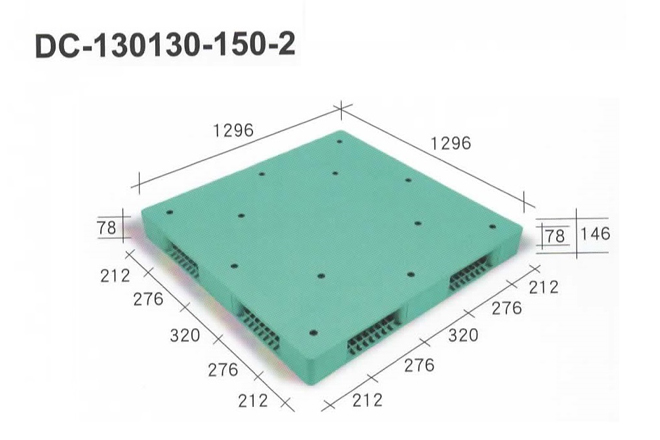

DC-130130-150-2

1296X1296X146

3.0

1.5

0.5

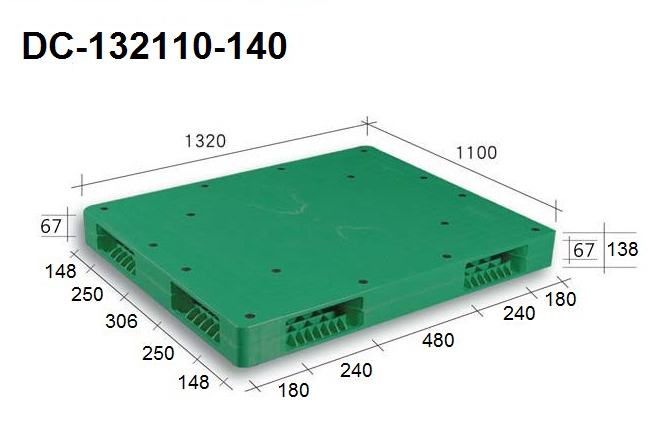

DC-132110-140

1320X1100X138

5.4

1.8

0.9

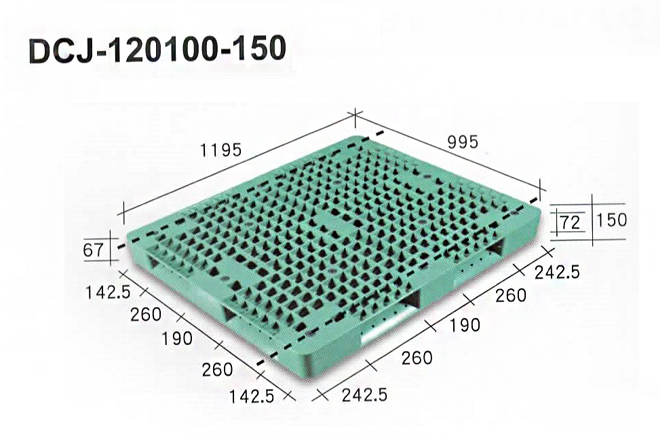

DCJ-120100-150

1200X1000X150

2.4

1.2

0.6

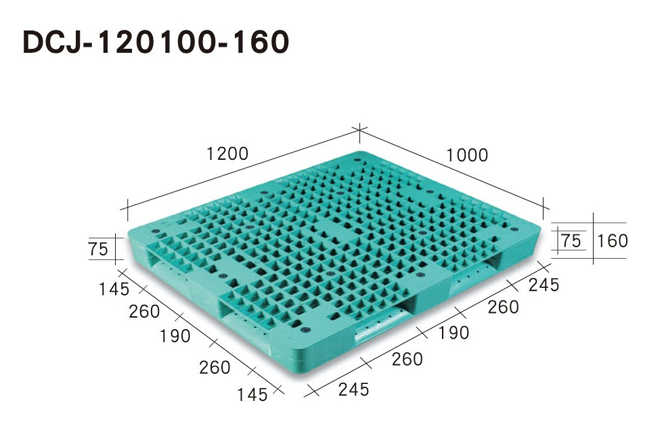

DCJ-120100-160

1200X1000X160

3.6

1.2

0.7
